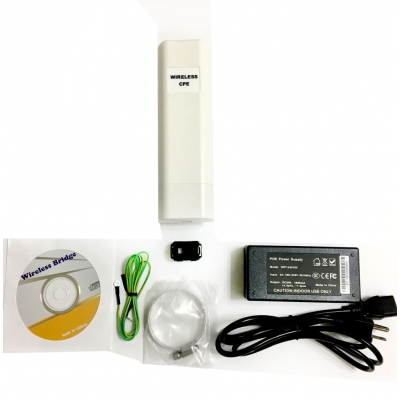

ASU-5600 5GHz Outdoor 1 watt MIMO AP Bridge CPE

ASU-5600 5GHz Outdoor 1 watt MIMO AP Bridge CPE
Click to enlarge
Price: $160.00
Availability: In Stock
Model: ASU-5600
Manufacturer: TRAS
Average Rating: Not Rated

Qty: Add to Cart
(This product has a maximum quantity of 1000)

ASU-5600 5GHz MIMO 300Mbps Outdoor Access Point / Bridge / CPE  (4.9-6.1 GHz)

Ideal Solution for Wireless data / video / voice Connection & Wi-Fi Internet Coverage.



l  Establish Stable Data/ HD video/Voice transmitting by High-bandwidth Wireless Bridge

l  Monitoring your area with HD IP security camera by long range wireless transmission

l  Sharing high speed Wi-Fi internet to all your members in wide coverage area.


The Features:

* Data rates of 300 Mbps

* Latest Technology 5.0~6.0 GHz full channel chipset Module

* Long Distance up to 5 Km

* Low power consumption & Compatible Solar / DC12V Power Supply

* Small size and light weight, easy installing & Setting

* Outdoor Design

Using Power Over Ethernet



Standards Compliance

IEEE 802.11a / n


64MB SDRAM / 16MB Flash


Plastic PC Case, IP 55 Verified





RF Transmission Power

[email protected] / [email protected] / [email protected] / [email protected]

Output power management:  Full, Half, Quarter, Min.

Transmission Rate

108(Turbo mode)/54/48/36/24/18/12/9/6Mbps auto fallback

Access Point Interfaces

Auto sensing MDI/ MDI-X Etherent 10/100 Base-TX; RJ-45


[email protected] / [email protected] / [email protected] / [email protected]

Antenna Type

Build-in 2x2 13 dBi

Status LED

Power / RSSI / LAN

Security Systems

64-bit/128-bit/152-bit WEP encryption, WPA / WPA2

Wireless Setting

AP, Bridge, CPE, Virtual AC

Channel Bandwidth

20 / 40 MHz with Data Bandwidth control


Site Survey Scan Tool, Max. Client Setting, TDM Coordination, Managed AP Setting, IGMP Snooping, Channel Protection, Spanning Tree ( 802.1d)

Support DFS, NAT, Time Server, Log Server, Ping Watchdog, SNMP V1 V2C V3

Support RTS Threshold Setting (0-2346)

Support Fragmentation Setting (256-2346)

Support Beacon Interval Setting (20-1000)

Support DTIM Inrerval Setting (1-255)

Support VALN : up to 8 VAP

Support Web Base Management, Console, RF Scheduling ( on/off control)

Support Mac Control, Suppressed SSID, Wireless Isolation, Firewall,

Support VPN Pass-through (IPsec, L2TP, PPTP),

Reset to default by WebUI or by Reset Button

Operating Environment

Operating Temperature: -20 ~ +70°C, Humidity: 10 ~ 95% RH


DC 12 ~24V POE; AC adapter 100V ~ 240V

Weight  / Dimension

0.5 Kg  /  205 x 64 x 61 mm

Regulatory Approval


System OS Support

Windows 2000/XP /7/8/10


One year limited
